Description
Note: This ball valve cannot be used for drinking water.

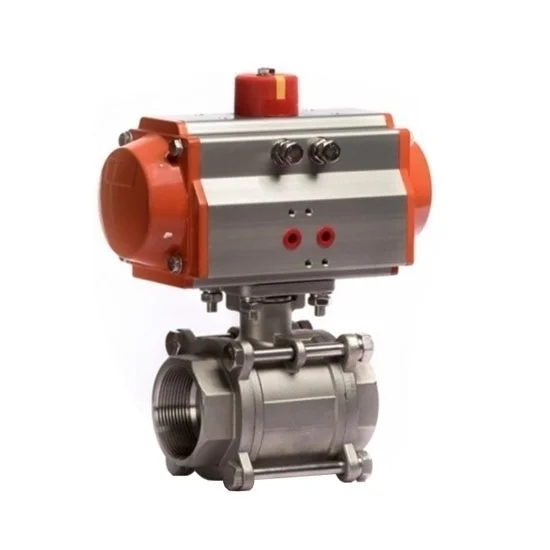

Industrial 3 inch ball valve with pneumatic actuator requires compressed air to work, which has such advantages as small fluid resistance, simple structure, high performance and reliable sealing. It has been widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.
Specification
| Ball Valve | Model | ATO-Q611F-16P-DN80 | ATO-Q641F-16P-DN80 | ATO-Q691X-10U-DN80 | ATO-Q644F-16P-DN80 | ATO-Q645F-16P-DN80 |
| Ball Valve Type (Optional) | 2 Way Threaded Type | 2 Way Flanged Type | 2 Way PVC True Union Type | 3 Way Flanged Type, L Port | 3 Way Flanged Type, T Port | |
| Port Size | 3 inch (DN80, 80mm) | |||||
| Environment Temperature | -10°C to 60°C | |||||
| Medium Temperature | -10°C to 180°C | |||||
| Medium Pressure | 1.6MPa | |||||
| Seat Material | Plastic (PTFE) | |||||
| Body Material | Stainless Steel (SS 304) | Stainless Steel (SS 304) | PVC | Stainless Steel (SS 304) | Stainless Steel (SS 304) | |
| Pneumatic Actuator | Model | ATO-AT100D | ATO-AT115D | ATO-AT088D | ATO-AT125D | ATO-AT125D |
| Bore Size | 100mm | 115mm | 88mm | 125mm | 125mm | |
| Air Supply Port | 1/4 inch | 1/4 inch | 1/4 inch | 1/4 inch | 1/4 inch | |
| Power Source | Compressed Air | |||||
| Actuator Type | Double Acting | |||||
| Air Pressure | 0.3 ~ 0.8MPa | |||||
| Actuator Body Material | Aluminum Alloy |
Details
Body Dimension (Unit: mm)
2 way stainless steel, threaded type
| φd | L | A | H |
| 78 | 210 | 268 | 262 |
2 way/ 3 way stainless steel, flanged type
| DN | L1 | T | f | D | B | C | H1 | H2 | A1 | A2 | L2 | N-M |
| 80 | 250 | 18 | 2 | 195 | 135 | 160 | 268 | 308 | 268 | 349 | 280 | 4-φ18 |
2 way, PVC true union type
| DN | D | D1 | d | L1 | A | H |
| 80 | 90 | 108 | 69 | 35 | 250 | 332 |
Pneumatic Actuator Dimension (Unit: mm)
ATO-AT088D
| Q | A | B | C | D | E | F | G | H | I |
| Φ50/Φ70mm | 250mm | 105mm | 49.5mm | 55.5mm | 145mm | 115mm | 30mm | 80mm | PF |
| J | K | O | P | S | T | U | V | W | X |
| M6 | 1/4″ | 20mm | 40.5mm | 4mm | 4mm | 12mm | 24mm | 16mm | 32mm |
ATO-AT100D
| Q | A | B | C | D | E | F | G | H | I |
| Φ70/Φ102mm | 268mm | 120mm | 55mm | 65mm | 157mm | 125mm | 30mm | 80mm | PF |
| J | K | O | P | S | T | U | V | W | X |
| M6 | 1/4″ | 30mm | 40.5mm | 4mm | 4mm | 12mm | 24mm | 16mm | 32mm |
ATO-AT125D
| Q | A | B | C | D | E | F | G | H | I |
| Φ70/Φ102mm | 349mm | 147mm | 67mm | 80mm | 189mm | 159mm | 30mm | 80mm | PF |
| J | K | O | P | S | T | U | V | W | X |
| M6 | 1/4″ | 20mm | 56.5mm | 4mm | 4mm | 12mm | 24mm | 16mm | 32mm |
Three Way Ball Valve Flow Pattern
T Type:
L Type:
Tips for selecting a 3 way pneumatic actuated ball valve
When buying a 3 way pneumatic ball valve, you need to pay attention to the model, port size and body material.
- The model
The applications of 3 way pneumatic ball valves are different, so the requirements for their models and parameters are also different. Clear the needs, and then determine which models of pneumatic ball valves meet your needs. - Port size
Depending on the location where the 3 way pneumatic ball valve is installed, the port size will also vary greatly. Once the port is not suitable, there is no way to continue the installation, and serious leakage may occur. - Ball valve body material
Copper pneumatic ball valve can be used in high temperature environment, and if it is used in corrosive medium, stainless steel pneumatic ball valve can be selected.
