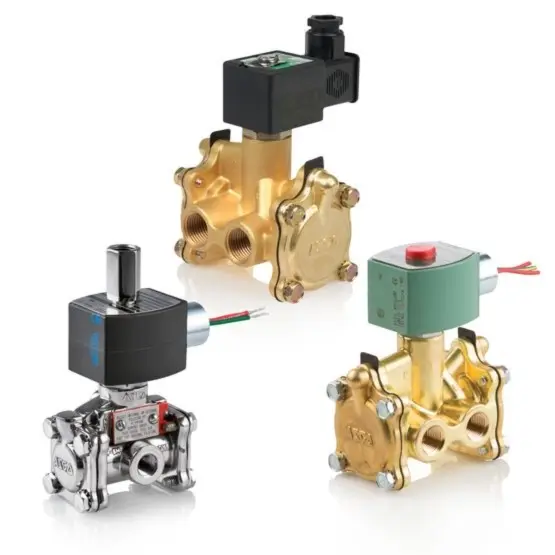

ASCO 8316G081VDC24/DCD – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Closed
• Body Material: Stainless Steel
• Flow (Cv): 1.5 Cv
• Pipe/Port Type and Size: NPT 1/4
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 15 psi
• Max Operating Pressure (Air): 120 psi
• Min Ambient Temperature: 0°
• Max Ambient Temperature: 104°
• Min Fluid Temperature: 0°
• Max Fluid Temperature: 120°
• Product Weight: 0 lbs
• Watt Rating: 11.6 W
• Orifice Size: 5/16 in
• Coil Class: FT
• Coil Number: 238710-006-D
• Lead Length: ANY, 18 inch
• Carton Note: 1/4 X 5/16 3NC S.S. 11.6/F DC
• Kit Number: 318181-V
