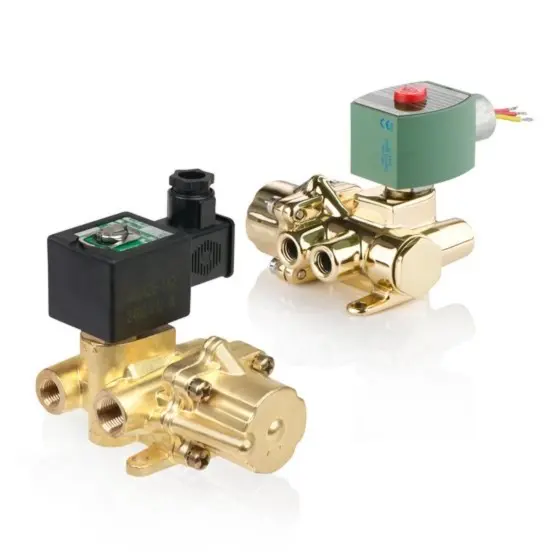

ASCO 8344G070DC12/DCD – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 0.8 Cv
• Pipe/Port Type and Size: NPT 1/4
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 125 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 104°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 150°
• Product Weight: 5.2 lbs
• Voltage and Frequency: 12 Volts DC
• Watt Rating: 11.6 W
• Orifice Size: 1/4 in
• Coil Class: F
• Coil Number: 238710-004-D
• Mounting Direction: 18 inch, Any
• Carton Note: 1/4 X 1/4 4W BRASS 11.6/F DC
• Kit Number: 302731
