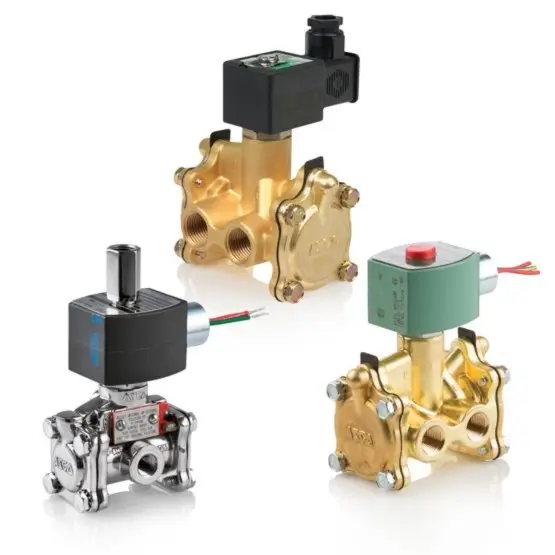

ASCO EF8316G004AC24/60D – Series 316 3-Way Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 4 Cv
• Pipe/Port Type and Size: NPT 1/2
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 15 psi
• Max Operating Pressure (Air): 150 psi
• Min Ambient Temperature: -4°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: -4°
• Max Fluid Temperature: 180°
• Product Weight: 0 lbs
• Voltage and Frequency: 24 AC with 60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 5/8 in
• Coil Class: FT
• Coil Number: 238614-005-D
• Lead Length: 18 inch, ANY
• Carton Note: 1/2 X 5/8 3NC BRASS 10.1/F AC
• Kit Number: 318182
