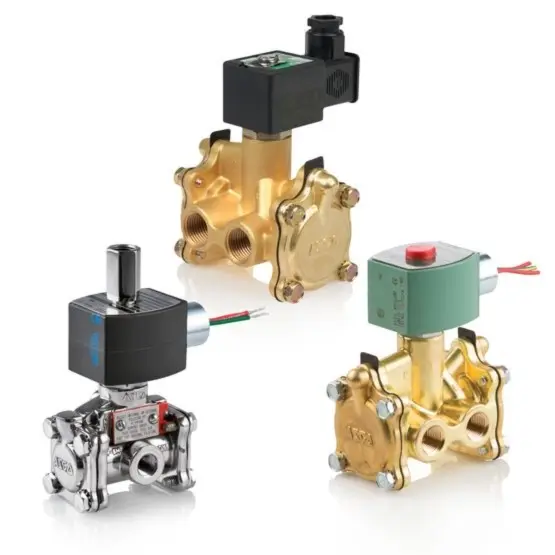

ASCO EF8316G014MBMOAC120/60,110/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 2.5 Cv
• Pipe/Port Type and Size: NPT 3/8
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 250 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 250 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 180°
• Product Weight: 4.1 lbs
• Voltage and Frequency: 110 AC, 120 AC with 50/60 Hz
• Watt Rating: 17.1 W
• Orifice Size: 5/8 in
• Coil Class: FB
• Coil Number: 238614-132-D
• Mounting Direction: 18 inch, ANY
• Carton Note: 3/8 X 5/8 3NC BRASS 17.1/F AC
• Kit Number: 314495-MO
