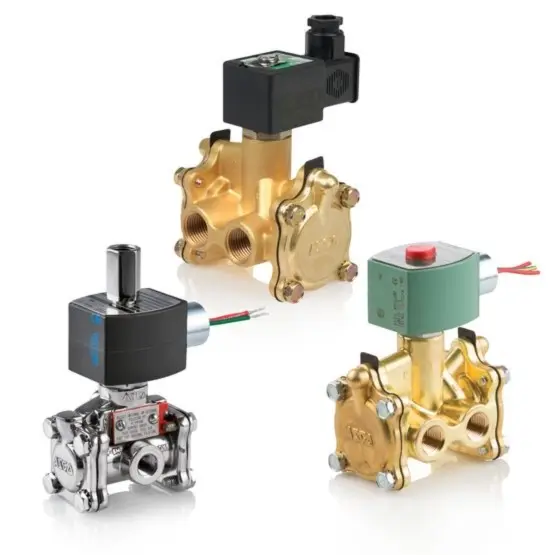

ASCO EF8316G036DC48/DCD – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Open
• Body Material: Brass
• Flow (Cv): 12.5 Cv
• Pipe/Port Type and Size: NPT 1
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 104°
• Max Fluid Temperature: 120°
• Product Weight: 7.81 lbs
• Watt Rating: 10.6 W
• Orifice Size: 1 in
• Coil Class: FT
• Coil Number: 238314-017-D
• Lead Length: 18 inch, ANY
• Mounting Brackets: OPTIONAL
• Carton Note: 1 X 1 3NO BRASS 10.6/F DC
• Kit Number: 302691
