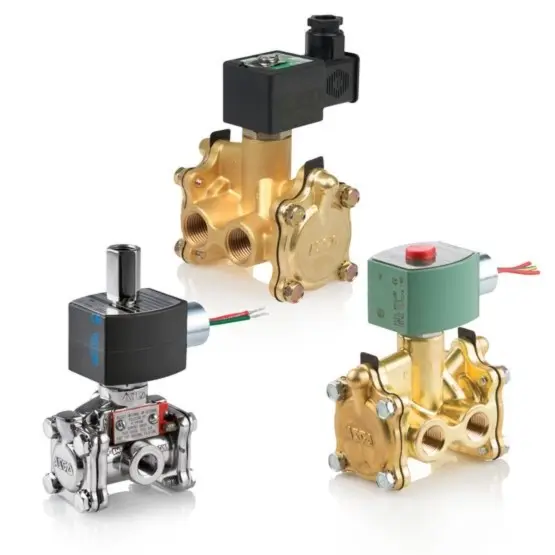

ASCO EF8316G056AC220/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Open
• Body Material: Brass
• Flow (Cv): 2.5 Cv
• Pipe/Port Type and Size: NPT 3/8
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 150 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Max Fluid Temperature: 180°
• Product Weight: 3.9 lbs
• Voltage and Frequency: 220 AC with 50 Hz
• Watt Rating: 6.1 W
• Holding Current (VA): 16
• Orifice Size: 5/8 in
• Coil Class: FT
• Coil Number: 238214-058-D
• Lead Length: 18 inch, ANY
• Mounting Brackets: OPTIONAL
• Carton Note: 3/8 X 5/8 3NO BRASS 8.1/F AC
• Kit Number: 314492
