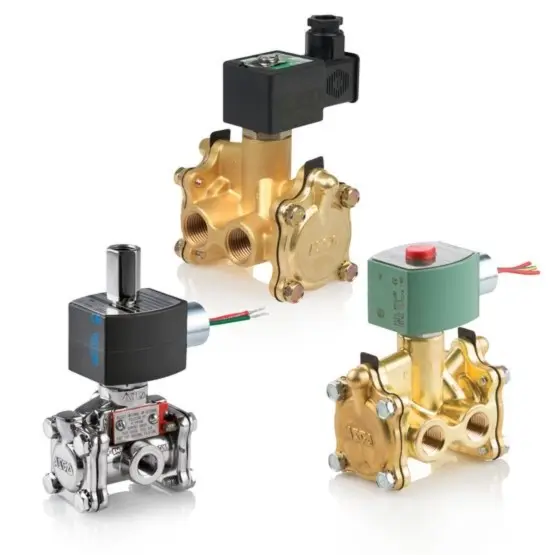

ASCO EF8316G076MBAC120/60,110/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Open
• Body Material: Brass
• Flow (Cv): 4.8 Cv
• Pipe/Port Type and Size: NPT 3/4
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 150 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Product Weight: 4.1 lbs
• Voltage and Frequency: 110 AC, 120 AC with 50/60 Hz
• Watt Rating: 6.1 W
• Orifice Size: 11/16 in
• Coil Class: F
• Coil Number: 238214-032-D
• Lead Length: 18 inch, ANY
• Carton Note: 3/4 X 11/16 3NO BRASS 6.1/F AC
• Kit Number: 314492
