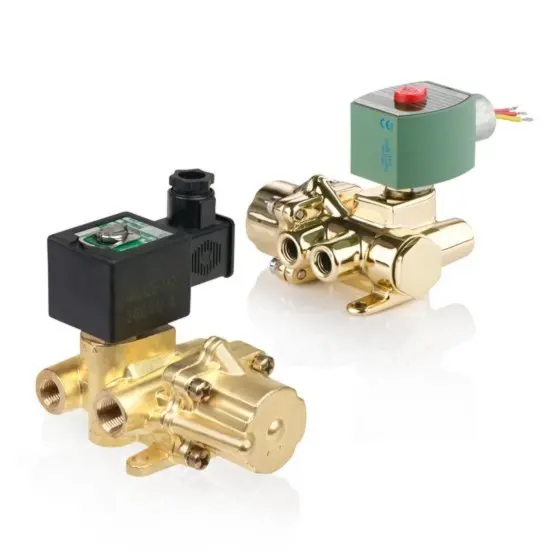

ASCO EF8344G072AC110/50D – Pilot Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 1.4 Cv
• Pipe/Port Type and Size: NPT 3/8
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 150 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 125 psi
• Product Weight: 9.59 lbs
• Voltage and Frequency: 110 Volts AC with 50 Hz
• Watt Rating: 10.1 W
• Orifice Size: 3/8 in
• Coil Class: F
• Coil Number: 238614-032-D
• Mounting Direction: 18 inch, Any
• Carton Note: 3/8 X 3/8 4W BRASS 10.1/F AC
• Kit Number: 302711
• Order Code: 20859
