Description
Specifications

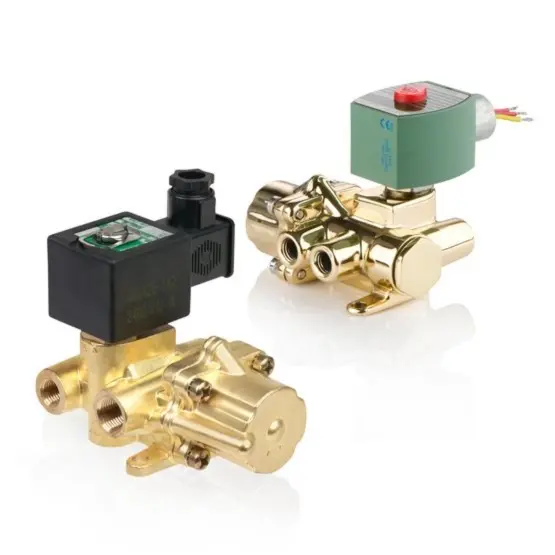

- Valve Actuation: Solenoid – Direct Acting
- Function: 4 way
- Body Material: Brass
- Flow (Cv): 1.4 Cv
- Pipe/Port Type and Size: NPT 3/8
- Media: Air, Dry Air, Inert Gas
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 125°
- Product Weight: 9.59 lbs
- Voltage and Frequency: 120 Volts AC with 60 Hz
- Watt Rating: 10.1 W
- Holding Current (VA): 25
- Orifice Size: 3/8 in
- Coil Class: FT
- Coil Number: 238614-032-D
- Lead Length: 18 inch, Vertical and Upright
- Carton Note: 3/8 X 3/8 4W BRASS 10.1/F AC
- Kit Number: 302711-P
