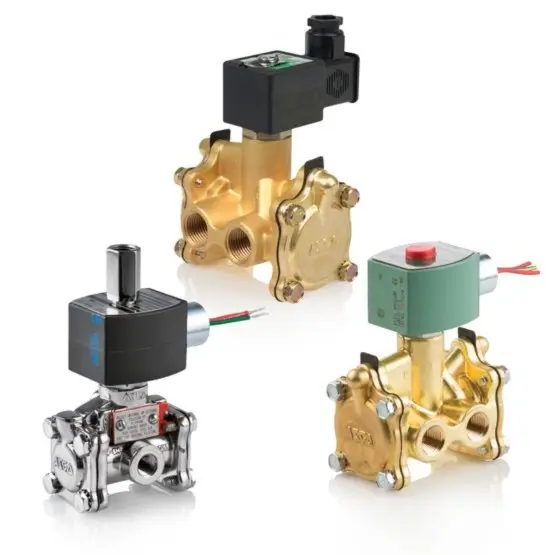

ASCO EFHB8316G024MOAC110/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 3.2 Cv
• Pipe/Port Type and Size: NPT 1/2
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 250 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 250 psi
• Product Weight: 4.1 lbs
• Voltage and Frequency: 110 AC with 50 Hz
• Watt Rating: 17.1 W
• Orifice Size: 5/8 in
• Coil Class: H
• Coil Number: 238814-132-D
• Mounting Direction: ANY, 18 inch
• Carton Note: 1/2 X 5/8 3NC BRASS 17.1/H AC
• Kit Number: 314495-MO
