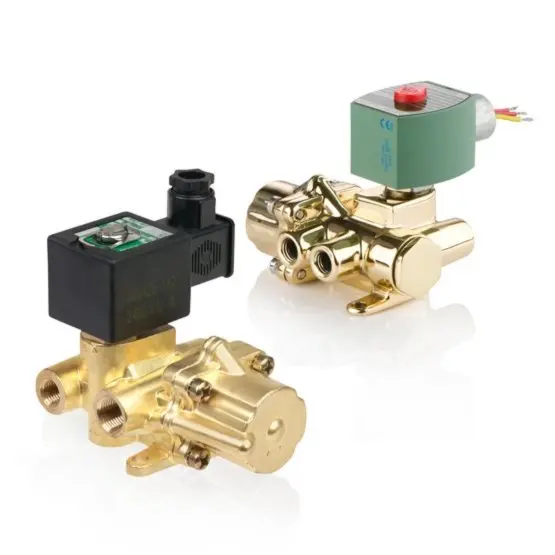

ASCO EFHC8344G076DC125/DCD – Pilot Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 5.2 Cv
• Pipe/Port Type and Size: NPT 3/4
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 125 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 125 psi
• Product Weight: 18.61 lbs
• Voltage and Frequency: 125 DC Battery Charging
• Watt Rating: 24.6 W
• Orifice Size: 3/4 in
• Coil Number: 238914-335-D
• Lead Length: 18 inch
• Carton Note: 3/4 X 3/4 4W BRASS 24.6/H DC
• Kit Number: 302735
