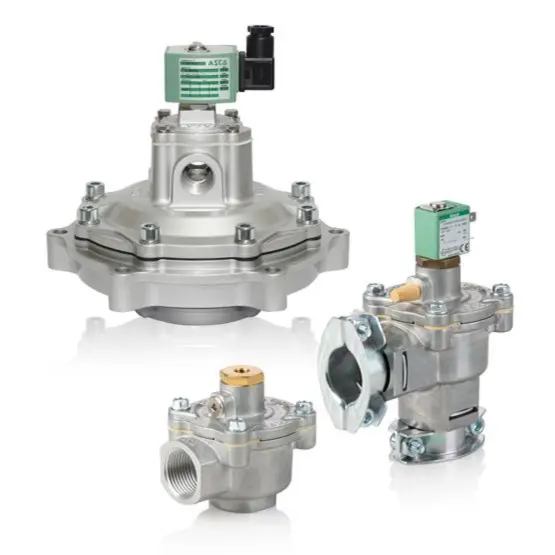

ASCO JKH8353J039AC120/60 – Pulse Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Aluminum
• Flow (Cv): 53 Cv
• Pipe/Port Type and Size: NPT 1 1/2
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 5 psi
• Max Operating Pressure (Air): 125 psi
• Product Weight: 8.75 lbs
• Voltage and Frequency: 120 Volts AC with 60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 2 in
• Coil Class: H
• Coil Number: 238812-032
• Mounting Direction: Any
• Carton Note: 1-1/2 X 2 2NC ALUM 10.1/H AC
• Kit Number: 322108
