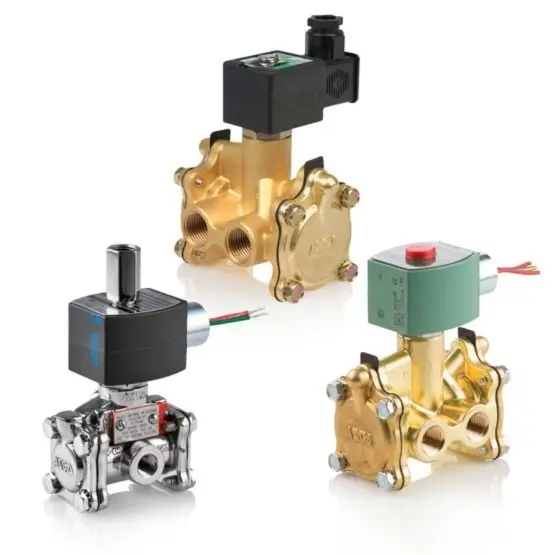

ASCO JSF8316G066MOAC24/60 – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Open
• Body Material: Brass
• Flow (Cv): 3.2 Cv
• Pipe/Port Type and Size: NPT 1/2
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 150 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Product Weight: 3.9 lbs
• Voltage and Frequency: 24 AC with 60 Hz
• Watt Rating: 6.1 W
• Orifice Size: 5/8 in
• Coil Class: F
• Coil Number: 238212-005
• Mounting Direction: ANY
• Carton Note: 1/2 X 5/8 3NO BRASS 6.1/F AC
• Kit Number: 314492-MO
