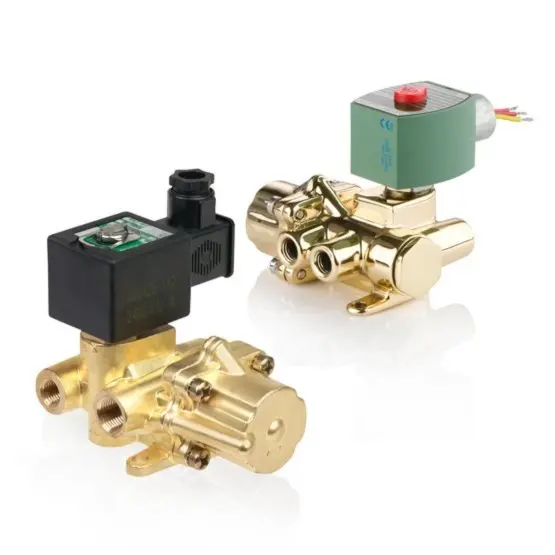

ASCO JSF8344G076AC240/60,220/50 – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 5.2 Cv
• Pipe/Port Type and Size: NPT 3/4
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 150 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 125 psi
• Product Weight: 18.61 lbs
• Voltage and Frequency: 220, 240 Volts AC with 50/60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 3/4 in
• Coil Class: F
• Coil Number: 238612-058
• Mounting Direction: Any
• Carton Note: 3/4 X 3/4 4W BRASS 10.1/F AC
• Kit Number: 302713
