Description
Specifications

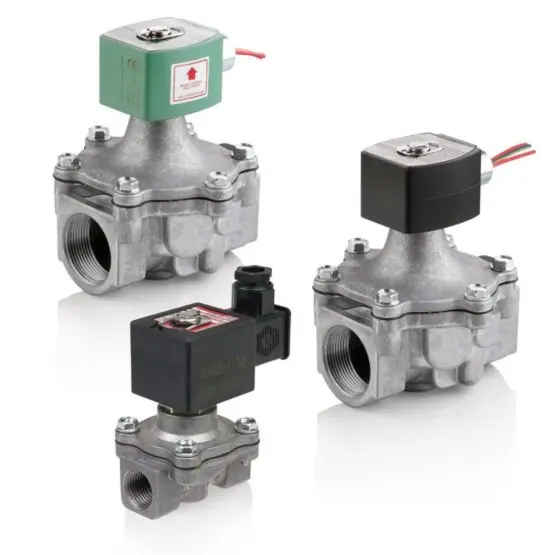

- Valve Actuation: Solenoid – Direct Acting
- Function: 2 way – 2/2 Normally Closed
- Body Material: Aluminum
- Flow (Cv): 32 Cv
- Pipe/Port Type and Size: NPT 1-1/4
- Voltage and Frequency: 240 Volts AC with 60 Hz
- Watt Rating: 15.4 W
- Orifice Size: 1-5/8 in
- Coil Class: FT
- Coil Number: 099257-002-D
- Mounting Direction: 18 inch, Vertical and Upright
- Carton Note: 1-1/4 X 1-5/8 2NC AL 15.4/F AC
- Kit Number: 302352-V
