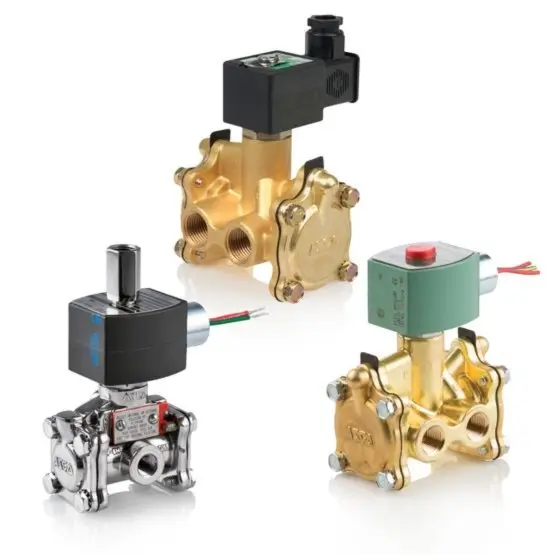

ASCO SC8316G066AC100/50 – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Open
• Body Material: Brass
• Flow (Cv): 3.2 Cv
• Pipe/Port Type and Size: NPT 1/2
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Max Fluid Temperature: 180°
• Product Weight: 3.9 lbs
• Voltage and Frequency: 100 AC with 50 Hz
• Watt Rating: 8.1 W
• Holding Current (VA): 16
• Orifice Size: 5/8 in
• Coil Class: FT
• Coil Number: 238212-027
• Mounting Direction: ANY
• Mounting Brackets: OPTIONAL
• Carton Note: 1/2 X 5/8 3NO BRASS 8.1/F AC
• Kit Number: 314492
