Description
Specifications

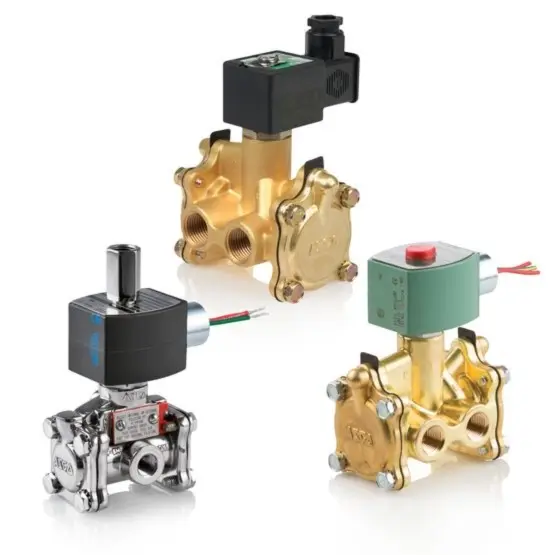

- Product Type: Solenoid Valve
- Valve Actuation: Solenoid – Pilot Operated
- Function: 3/2 Normally Open
- Body Material: Brass
- Flow (Cv): 3.24 Cv
- Pipe/Port Type and Size: NPTF 1/2
- Media: Water, Air, Inert Gas
- Min Operating Pressure (Air): 0 bar
- Max Operating Pressure (Air): 8 bar
- Min Operating Pressure (Water): 0 bar
- Max Operating Pressure (Water): 8 bar
- Min Ambient Temperature: -40 °C
- Max Ambient Temperature: 75 °C
- Min Fluid Temperature: -20 °C
- Max Fluid Temperature: 80 °C
- Product Weight: 4.4 kg
- Voltage and Frequency: 24/DC
- Watt Rating: 10
- Orifice Size: 16 mm
- Electrical Connection Type: Included (EN175301-803, ISO 4400, industry standard form A)
- Coil Class: F
- Mounting Brackets: OPTIONAL
