Description
Designed for demanding industrial environments, this industrial embedded computer supports -20°C to 60°C operation , dual Intel LAN, MSATA storage, Mini PCIe expansion, and up to 8GB DDR3L RAM. It provides versatile connectivity for industrial control and intelligent automation. Upgrade your system with this compact and reliable embedded computer.
Specification
| Model | ATO-IBOX-101P |
| Chassis Color | Silver (Custom color available) |
| Chassis Material | High-grade all-aluminum alloy with hard anodized surface |
| Processor | Onboard Intel Celeron J1900 (4 cores / 4 threads, 1.99 GHz base frequency, 10 W TDP) |
| Memory | 1× DDR3L 1333/1600 MHz SODIMM slot, up to 8 GB maximum capacity |
| BIOS | AMI UEFI BIOS |
| Graphics Chip | Integrated Intel HD Graphics |
| Display Interfaces | 1× HDMI high-definition port, 1× onboard LVDS header (supports synchronous / asynchronous dual display) |

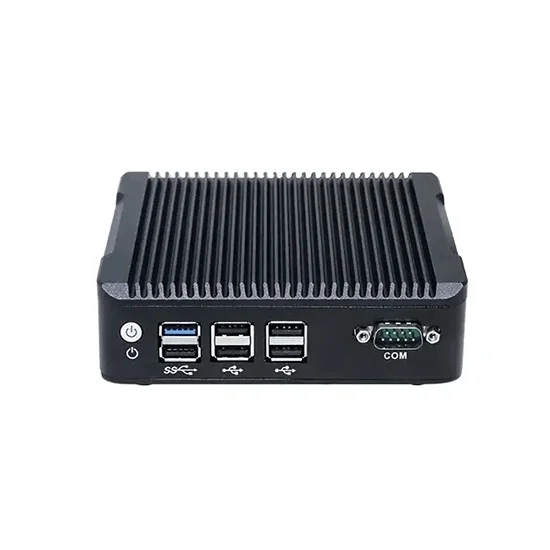

| Front Panel I/O Ports | 4× USB2.0, 2× COM ports, 1× power switch |

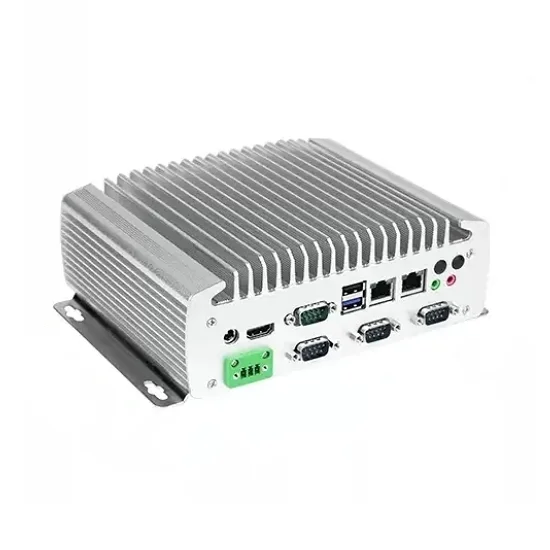

| Rear Panel I/O Ports | 1× USB3.0, 1× USB2.0, 4× COM ports (COM1 & COM2 support RS232/485 mode switching), 1× 3-pin Phoenix terminal block 2× Gigabit Ethernet ports, 1× HDMI port, 1× DC 12 V power input, 1× Mic input, 1× Line Out audio output |
| 2× Gigabit Ethernet ports, 1× HDMI port, 1× DC 12 V power input, 1× Mic input, 1× Line Out audio output | |
| Expansion Interfaces | 1× Mini PCIe slot (for MSATA storage) |
| 1× Mini PCIe slot (WIFI / 3G / 4G module optional), with SIM card socket | |
| Network Interfaces | 2× Intel i211-AT Gigabit Ethernet controllers |
| Storage Interfaces | 1× MSATA slot, 1× 2.5-inch SATA hard drive bay |
| Input Voltage | DC 12 V power supply input |
| Additional Functions | Power-on boot, scheduled boot, Wake-on-LAN, PXE boot, watchdog timer (0 ~ 255 levels adjustable) |
| Operating Temperature | 0℃ ~ +50℃ (with commercial HDD); -20℃ ~ +60℃ (with industrial SSD), surface air circulation required |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing |
| Dimensions | 186 * 150 * 66 mm (wall mount bracket excluded) |
| Net Weight | 1.6 kg (wall mount bracket excluded) |
| Application Fields | Industrial automation, medical equipment, logistics & transportation, warehousing, electronic education and other industries |
Features
- Fanless Aluminum Alloy Cooling: The industrial embedded computer features a full aluminum alloy enclosure that efficiently dissipates heat without a cooling fan. The fanless design minimizes dust accumulation, reduces noise, and improves long-term reliability for continuous 24/7 industrial operation.
- Rich Industrial I/O Interfaces: Equipped with 6 COM ports, dual Intel Gigabit Ethernet ports, multiple USB interfaces, HDMI, and Phoenix terminal connections, the industrial PC easily integrates with PLCs, barcode scanners, sensors, industrial controllers, and other automation equipment.
- Compact Embedded Design: Measuring only weighing 1.6 kg, this compact industrial embedded computer saves installation space and supports both desktop and wall-mounted installation, making it ideal for embedded cabinets and confined industrial environments.
- Quad-Core Performance: Powered by a quad-core processor and supporting up to 8 GB DDR3L memory, this embedded industrial PC delivers reliable computing performance with a low 10 W power draw, balancing high efficiency and energy conservation.
- Dual Display for Efficient Operation: Equipped with HDMI + LVDS dual-display output and supporting synchronous/asynchronous modes, this industrial PC enables multi-screen monitoring, HMI deployment, machine vision and industrial control system applications.
- Dual Display for Efficient Operation: Supporting HDMI + LVDS dual output with synchronous or asynchronous modes, this industrial PC enables multi-screen monitoring and is suitable for HMI applications, machine vision and industrial control systems.
- Flexible Expansion Options: The embedded computer provides MSATA storage, a 2.5-inch drive bay, and Mini PCIe expansion, with optional WiFi, 3G, or 4G wireless communication to meet various industrial networking requirements.
Dimension
Interface Diagram
Package Include
Tips: What are the advantages of embedded industrial PCs?
Embedded industrial PCs offer a compact, rugged, and highly reliable computing platform designed for continuous operation in demanding industrial environments. Their fanless and cableless designs reduce mechanical wear, dust ingress, and maintenance requirements, while wide operating temperature ranges, resistance to shock and vibration, and long product life cycles ensure stable performance in factories, transportation, energy, and automation applications. In addition, embedded industrial PCs typically provide rich industrial I/O interfaces, flexible expansion options, and low power consumption, making them ideal for edge computing, machine vision, industrial control, data acquisition, and IoT systems where space efficiency, reliability, and long-term availability are critical.
