RS PRO Brass Threaded Insert diameter 8 mm 12.7 mm

Description

RS PRO Brass Threaded Insert – Expansion insert

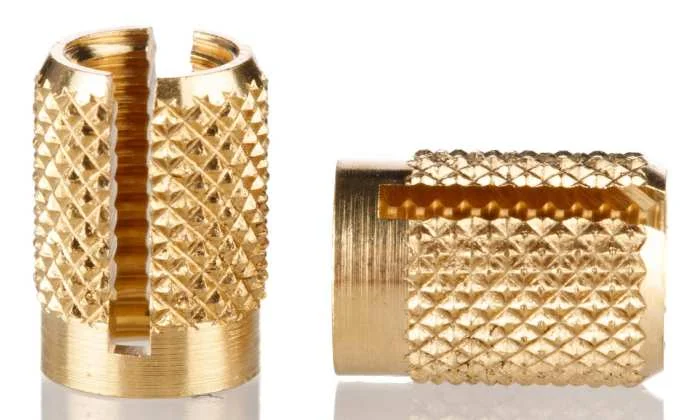

RS PRO range of expansion inserts which are suitable for use with most plastic materials, using either through or blind holes. These threaded inserts feature a knurled outer diameter with expansion slots that prevent rotation or loosening due to vibration and ensures consistent self-locking pressure on the fixing screws.

Threaded inserts are designed to be placed into existing holes to provide a threaded receptacle so that screws, bolts or other fixings can be installed. RS PRO have a great range of threaded inserts made from various materials including brass and steel with zinc plated finishes.

Options include:
Threaded Inserts available with Flush Head
278-534 – Insert M3 flush
278-540 – Insert M3.5 flush
278-556 – Insert M4 flush
278-562 – Insert M5 flush
278-578 – Insert M6 flush

Threaded Inserts available with Flange Head
278-584 – Insert M3 flange
278-590 – Insert M3.5 flange
278-607 – Insert M4 flange
278-613 – Insert M5 flange
278-629 – Insert M6 flange
