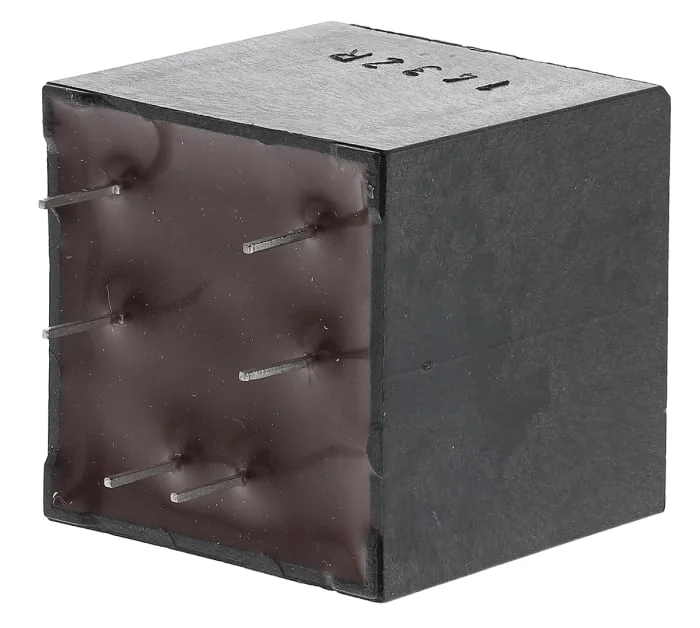

Schaffner Through Hole Pulse Transformer 1 1 1 Turns Ratio, 3 mH Prim. Inductance, 0.33Ω Prim. Resistance

Description

Pulse transformers IT Series

Schaffner’s IT pulse transformers are designed to offer you galvanic isolation for transformer coupled gate drives. The IT series provides negligible delays and the possibility of voltage scaling. They are available with single or double secondary winding for multiple gate drives. Choosing the IT product line brings you the rapid availability of a standard gate drive transformer. A wide selection on turns ratio, ignition current and voltages are designed to offer you the desired standard product.
