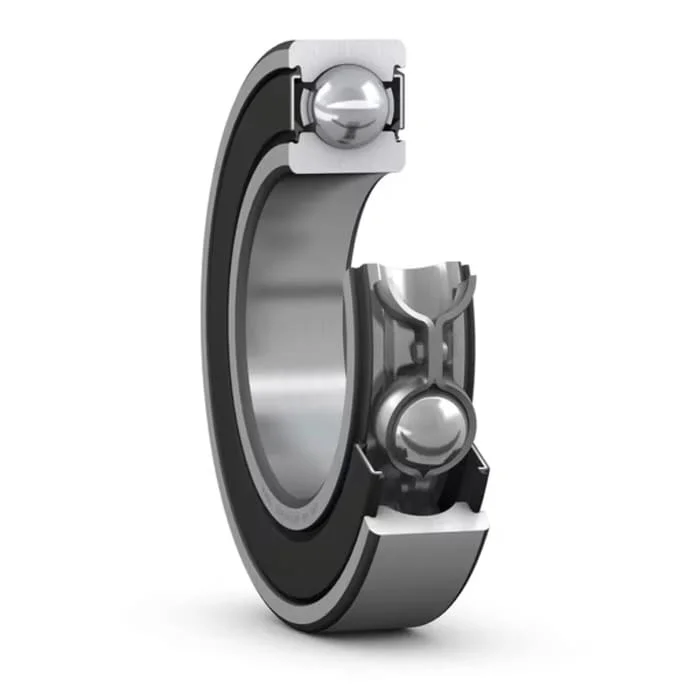

SKF 6205-2RSHK 1 Row Deep Groove Ball Bearing – 25 mm ID, 52 mm OD

Description

SKF High Temperature Deep Groove Ball Bearing

SKF Ball Bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in high operating temperatures.

Features:

• Excellent performance in hot conditions, dry environments and low rotational speed applications
• Temperature range -30°C to 150°C
• Suitable for high and very high speeds
• Steel/Ceramic ball material
• Plain race type
• Low friction
• Available in many designs, variants and sizes

Why choose Deep Groove Ball Bearings?

• For their versatility – channelling radial and axial loads they are widely used in many industries
• Cost efficient – due to low friction torque the temperature remains low therefore reduces the energy cost of running in equipment such as the conveyor belt
• Low maintenance – no additional lubrication after installation

Applications:

• Agricultural industry
• Food processing
• Machine Tools
• Material handling
• Medical/Pharmaceutical
• Printing
• Wind energy

What is the inner ring diameter?
A range between 6 mm to 40 mm

What is internal/external design?

• 2RS1 – Contact seal NBR on both sides 2RSH – Contact seal NBR on both sides
• Z, 2Z – Shield on one or both sides
• 2RSL – RSL low-friction contact seal on both sides of the bearing
• 2RZ – RZ low-friction non-contact seal on both sides of the bearing
• 2ZNR – Shield on both sides, snap ring groove in the outer ring, with snap ring
• NR – Snap ring groove in the outer ring, with an appropriate snap ring
• E – Reinforced ball set

Cage Design

• TN9 – Glass fibre reinforced polyamide 66 cages, rolling element centred
• Stainless steel

Lubrication

• GJN – Grease with a polyurea thickener of consistency 2 to the NLGI scale for a temperature range -30°C to +150°C (normal fill grade) VT162 – Lubricated with Klueber Isoflex Topas NB52 grease
• WT – Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +160 °C
• LHT – Grease with a lithium thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –50°C to +140 °C
• HT – Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +150 °C (normal fill grade)

Accuracy/Clearance

• C2 – Radial internal clearance smaller than normal C3 – Internal clearance greater than normal
• C4 – Radial internal clearance greater than C3
• C5 – Radial internal clearance greater than C4
